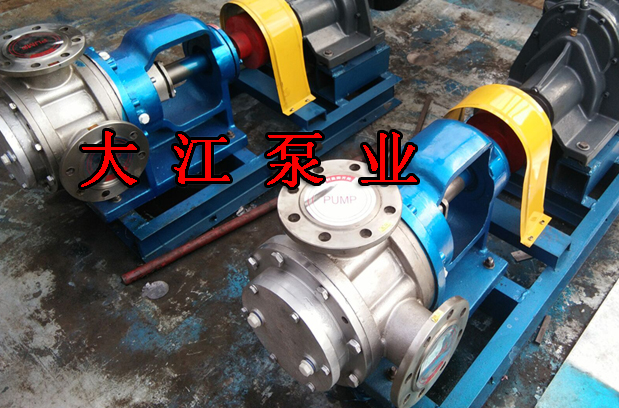

NYP型不銹鋼轉子泵
NYP型不銹鋼轉子泵結構：有內、外轉子、軸、泵體、前蓋、托架、密封、軸承等部分組成。NYP高粘度不銹鋼齒輪泵的密封方式有機械密封和填料密封兩種形式。如果是高溫、高粘稠度及腐蝕性較強的介質，可選用填料密封。
生產商：泊頭市大江泵業制造有限公司
產 地：河北省》滄州市》泊頭市
銷售一部：0317-5662186 銷售二部：0317-8266846
銷售三部：0317-8287114 銷售四部：0317-5569887
NYP型不銹鋼轉子泵詳細介紹
NYP型不銹鋼轉子泵結構：有內、外轉子、軸、泵體、前蓋、托架、密封、軸承等部分組成。NYP高粘度不銹鋼齒輪泵的密封方式有機械密封和填料密封兩種形式。如果是高溫、高粘稠度及腐蝕性較強的介質，可選用填料密封。
NYP型不銹鋼高粘度轉子泵輸送易結晶物料時，可在前蓋和泵體上設計帶有保溫夾套，工作時通過蒸汽保溫融化。從主軸外伸端向泵看為順時針旋轉。
NYP型不銹鋼轉子泵優點：
在輸送液體時既平穩又無脈動，同時振動小噪音也低;該保溫泵還具有很強的自吸能力，當正確選用保溫泵零件，可輸送多種有腐蝕性的介質，但要注意其使用溫度可達200℃;并且因為它的內外轉子轉向相同，造成的磨損小，從而_了使用壽命。保溫泵的流量也因為泵的轉速與流量呈線性函數關系也可以進行適當?shù)母淖?。保溫泵_適用高粘稠度介質的輸送。
NYP型不銹鋼轉子泵用途：
NYP高粘度轉子泵可用于對重油、瀝青、膠類、樹脂、洗滌劑等物體的輸送。_應用于_流體的輸送行業，尤其對于處理粘度變化較大、范圍較寬的流體輸送。應用行業：適用于輸送純凈且有一定粘度的流體，可用于輸送油品如潤滑油、原油等;也可以用來輸送橡膠、瀝青、油漆、粘合劑、染料、涂料、潤滑劑、多元醇、食品、藥品等不含顆粒性雜質的高粘度物料;還可用于輸送PA PB PC PE PS HIPS ABS PP PET PVA等高溫、高粘度聚合物熔體物料。輸送高粘度樹脂，聚氨酯，聚謎，聚乙烯等類似的高粘度物料.
NYP型不銹鋼轉子泵_參數表
|
型號
|
通徑mm
|
理論排量
L/100rev |
粘度
cSt |
轉速
r/min |
壓差(MPa)
|
連接形式
|
|||
|
0.4
|
0.6
|
0.8
|
1.0
|
||||||
|
軸功率流量(L/min) |
|||||||||
|
NYP0.78
|
15
|
0.78
|
20
|
1390
|
0.17/9.3
|
0.23/9.0
|
0.28/8.8
|
0.32/8.6
|
G1/2"
|
|
60
|
1390
|
0.18/9.5
|
0.24/9.2
|
0.28/9.0
|
0.33/8.9
|
||||
|
200
|
1390
|
0.31/10.4
|
0.35/10.2
|
0.39/10.0
|
0.43/9.9
|
||||
|
600
|
1390
|
0.39/10.4
|
0.44/10.3
|
0.48/10.3
|
0.52/10.2
|
||||
|
2000
|
910
|
0.23/6.8
|
0.27/6.8
|
0.30/6.8
|
0.33/6.7
|
||||
|
6000
|
720
|
0.24/5.4
|
0.31/6.1
|
0.30/6.8
|
0.40/6.8
|
||||
|
NYP2.3
|
25
|
2.3
|
20
|
1400
|
0.38/28.4
|
0.49/27.5
|
|
G1"
|
|
|
60
|
1400
|
0.59/29.2
|
0.65/28.8
|
|
|
||||
|
200
|
1400
|
0.61/30.0
|
0.72/29.6
|
|
|
||||
|
600
|
1400
|
0.92/31.9
|
0.96/31.7
|
|
|
||||
|
2000
|
910
|
0.61/19.9
|
0.68/19.7
|
|
|
||||
|
6000
|
720
|
0.77/16.32
|
0.83/16.2
|
|
|
||||
|
NYP3.6
|
40
|
3.6
|
20
|
1450
|
0.69/46.7
|
0.94/45.9
|
1.18/45
|
1.44/43.4
|
法蘭
Flange |
|
60
|
1450
|
0.81/47.5
|
1.09/46.7
|
1.37/45.9
|
1.57/44.7
|
||||
|
200
|
1450
|
1.06/49.7
|
1.31/49.2
|
1.56/48.8
|
1.79/47.3
|
||||
|
600
|
1450
|
1.45/49.9
|
1.61/49.6
|
1.77/49.3
|
1.93/49
|
||||
|
2000
|
960
|
1.28/34.3
|
1.41/33.8
|
1.54/33.7
|
1.65/33.6
|
||||
|
6000
|
640
|
1.08/23.0
|
1.18/22.9
|
1.28/22.9
|
1.37/22.8
|
||||
|
20000
|
583
|
1.22/20.5
|
1.24/20.4
|
1.25/20.4
|
1.38/20.3
|
||||
|
60000
|
455
|
0.84/16.3
|
0.91/16.2
|
0.98/16.1
|
1.01/16
|
||||
|
NYP7.0
NYP7.0A (原型號: NYP3 NYP3A) |
40
|
7.0
|
20
|
1450
|
1.36/98.1
|
1.8/96
|
2.0/94.7
|
2.4/93
|
螺紋
Thread |
|
60
|
1450
|
1.45/99
|
1.9/97
|
2.2/96.4
|
2.6/95
|
||||
|
200
|
1450
|
1.62/99.8
|
2.0/98
|
2.3/97.5
|
2.7/97
|
||||
|
600
|
960
|
1.4/62
|
1.6/65
|
1.8/44
|
2.0/64
|
||||
|
2000
|
960
|
1.8/67
|
2.0/66
|
2.3/65
|
2.6/65
|
||||
|
6000
|
640
|
1.5/44.5
|
1.7/44
|
1.8/44
|
2.0/44
|
||||
|
20000
|
583
|
1.6/40.5
|
1.9/40
|
2.1/40
|
2.2/40
|
||||
|
60000
|
455
|
1.46/31.5
|
1.8/31
|
1.9/31
|
2.0/31
|
||||
|
NYP24
|
50
|
24
|
20
|
720
|
1.8/165
|
2.3/161
|
2.8/158
|
3.4/155
|
法蘭
Flange |
|
60
|
720
|
2.0/166
|
2.6/164
|
3.1/162
|
3.7/158
|
||||
|
200
|
610
|
1.9/143
|
2.5/141
|
3.0/139
|
3.5/136
|
||||
|
600
|
541
|
2.1/127
|
2.6/125
|
3.0/124
|
3.5/122
|
||||
|
2000
|
475
|
2.2/112
|
2.6/111
|
2.9/110
|
3.4/109
|
||||
|
6000
|
357
|
2.0/85
|
2.3/84
|
2.6/83
|
2.9/83
|
||||
|
20000
|
303
|
1.9/72
|
2.2/72
|
2.4/72
|
2.6/71
|
||||
|
60000
|
228
|
1.6/54
|
1.8/54
|
2.0/54
|
2.3/54
|
||||
|
NYP52
NYP52A (原型號: NYP10 NYP10A) |
50
|
52
|
20
|
720
|
4.3/362
|
5.8/355
|
6.9/348
|
8.1/340
|
螺紋
Thread |
|
60
|
720
|
4.7/364
|
6.2/358
|
7.3/352
|
7.5/346
|
||||
|
200
|
610
|
4.6/309
|
5.9/304
|
6.9/300
|
8.0/294
|
||||
|
600
|
541
|
4.9/275
|
6.0/271
|
6.8/268
|
7.8/264
|
||||
|
2000
|
475
|
5.0/243
|
5.9/238
|
6.6/237
|
7.6/235
|
||||
|
6000
|
357
|
4.1/184
|
4.9/182
|
5.3/181
|
6.2/180
|
||||
|
20000
|
303
|
3.8/157
|
4.6/156
|
5.1/155
|
5.6/155
|
||||
|
60000
|
228
|
3.1/119
|
3.7/118
|
4.0/118
|
4.5/118
|
||||
|
NYP80
|
80
|
80
|
20
|
615
|
5.2/471
|
6.9/461
|
8.5/451
|
10.0/433
|
法蘭
Flange |
|
60
|
615
|
5.5/474
|
7.2/465
|
8.8/457
|
10.5/448
|
||||
|
200
|
544
|
5.7/421
|
7.2/414
|
8.6/408
|
10.1/401
|
||||
|
600
|
479
|
6.0/372
|
7.3/367
|
8.5/362
|
9.8/356
|
||||
|
2000
|
417
|
6.5/326
|
7.7/322
|
8.9/319
|
10.1/315
|
||||
|
6000
|
305
|
5.6/239
|
6.6/237
|
7.5/326
|
8.4/233
|
||||
|
20000
|
228
|
5.5/180
|
6.4/179
|
6.9/178
|
7.7/177
|
||||
|
60000
|
188
|
5.5/149
|
6.1/149
|
6.7/149
|
7.2/148
|
||||
|
NYP111
NYP111A (原型號: NYP30 NYP30A) |
80
|
111.4
|
20
|
615
|
6.7/660
|
9.2/647
|
11.2/634
|
13.6/622
|
法蘭
Flange |
|
60
|
615
|
6.9/664
|
9.4/652
|
11.5/642
|
13.9/631
|
||||
|
200
|
544
|
7.1/589
|
9.3/580
|
11.0/573
|
13.2/563
|
||||
|
600
|
479
|
7.3/521
|
9.5/514
|
11.1/508
|
13.1/502
|
||||
|
2000
|
417
|
7.7/455
|
9.7/450
|
11.0/447
|
12.7/442
|
||||
|
6000
|
305
|
6.9/335
|
8.4/332
|
9.4/331
|
10.6/328
|
||||
|
20000
|
228
|
6.3/251
|
7.5/250
|
8.2/249
|
9.2/248
|
||||
|
60000
|
188
|
6.2/209
|
7.1/208
|
7.6/208
|
8.5/207
|
||||
|
NYP160
|
100
|
160
|
20
|
600
|
8.9/930
|
12.1/916
|
15.3/902
|
17.5/888
|
法蘭
Flange |
|
60
|
600
|
9.4/935
|
12.6/922
|
15.8/910
|
19.0/898
|
||||
|
200
|
550
|
12.3/866
|
15.3/859
|
18.3/852
|
21.3/845
|
||||
|
600
|
480
|
10.2/754
|
12.8/747
|
15.4/740
|
18.0/737
|
||||
|
2000
|
355
|
9.1/560
|
11.1/556
|
13/552
|
15.1/548
|
||||
|
6000
|
319
|
10.0/505
|
11.7/502
|
13.5/500
|
15.2/497
|
||||
|
NYP220
|
125
|
220
|
20
|
430
|
8.8/902
|
11.9/880
|
15.0/858
|
18.0/836
|
法蘭
Flange |
|
60
|
430
|
9.0/909
|
12.0/890
|
15.0/871
|
18.0/852
|
||||
|
200
|
355
|
8.5/753
|
11.1/739
|
13.7/726
|
16.3/713
|
||||
|
600
|
320
|
9.4/682
|
11.8/671
|
14.1/660
|
16.5/649
|
||||
|
2000
|
254
|
9.1/544
|
11.0/537
|
13.0/530
|
15.1/523
|
||||
|
6000
|
244
|
10.1/483
|
11.9/478
|
13.6/473
|
15.4/468
|
||||
|
20000
|
160
|
9.1/347
|
10.5/345
|
11.9/343
|
13.3/341
|
||||
|
60000
|
117
|
8.4/256
|
9.4/255
|
10.4/254
|
11.4/253
|
||||
|
NYP320
|
125
|
320
|
20
|
430
|
13.0/1306
|
18.0/1270
|
22.0/1235
|
26.0/1200
|
法蘭
Flange |
|
60
|
430
|
13.0/1316
|
18.5/1285
|
22.0/1255
|
26.5/1225
|
||||
|
200
|
355
|
11.8/1091
|
15.5/1068
|
19.1/1046
|
22.8/1024
|
||||
|
600
|
320
|
13.2/987
|
16.5/968
|
19.7/950
|
22.9/932
|
||||
|
2000
|
284
|
14.2/881
|
17.4/867
|
20.6/854
|
23.8/841
|
||||
|
6000
|
222
|
13.7/693
|
16.2/684
|
18.7/675
|
21.2/666
|
||||
|
20000
|
168
|
13.2/529
|
15.3/525
|
17.3/522
|
19.4/519
|
||||
|
60000
|
125
|
12.0/397
|
13.7/396
|
15.3/395
|
16.9/394
|
||||
|
NYP650
|
150
|
650
|
20
|
315
|
19.0/1921
|
26.0/1857
|
33.0/1794
|
|
法蘭
Flange |
|
60
|
315
|
20.0/1940
|
26.4/1886
|
33.2/1832
|
|
||||
|
200
|
284
|
17.9/1756
|
24.0/1711
|
30.4/1666
|
|
||||
|
600
|
253
|
17.6/1572
|
22.7/1534
|
28.9/1500
|
|
||||
|
2000
|
196
|
15.7/1225
|
20.6/1201
|
24.5/1176
|
|
||||
|
6000
|
160
|
16.0/1008
|
19.8/993
|
22.3/978
|
|
||||
|
20000
|
117
|
13.6/745
|
16.5/738
|
19.2/731
|
|
||||
|
60000
|
100
|
15.0/645
|
17.2/643
|
19.5/640
|
|
||||
|
NYP727
(原型號: NYP50) |
150
|
727
|
20
|
315
|
21.5/2135
|
29.4/2058
|
37.3/1980
|
|
法蘭
Flange |
|
60
|
315
|
22.4/2157
|
29.8/2090
|
37.3/2026
|
|
||||
|
200
|
280
|
19.6/1928
|
26.7/1874
|
33.5/1820
|
|
||||
|
600
|
245
|
19.6/1696
|
25.1/1652
|
31.2/1611
|
|
||||
|
2000
|
200
|
18.7/1394
|
23.3/1363
|
28.5/1334
|
|
||||
|
6000
|
170
|
19.2/1195
|
23.3/1175
|
27.9/1155
|
|
||||
|
20000
|
125
|
17.0/888
|
20.1/878
|
23.3/868
|
|
||||
|
60000
|
100
|
16.8/720
|
19.5/717
|
22.3/713
|
|
||||
|
NYP1670
|
200
|
1670
|
20
|
250
|
38.0/3852
|
52.0/3690
|
66.0/3529
|
|
法蘭
Flange |
|
60
|
250
|
40.0/3900
|
54.0/3763
|
68.0/3626
|
|
||||
|
200
|
225
|
37.5/3535
|
50.0/3424
|
62.5/3313
|
|
||||
|
600
|
195
|
37.0/3079
|
48.0/2990
|
58.6/2900
|
|
||||
|
2000
|
160
|
35.0/2547
|
44.0/2485
|
53.0/2422
|
|
||||
|
6000
|
135
|
34.6/2177
|
42.0/2138
|
50.0/2100
|
|
||||
|
20000
|
112
|
35.0/1830
|
41.5/1810
|
48.0/1790
|
|
||||
|
60000
|
85
|
36.0/1405
|
35.7/1400
|
40.6/1392
|
|||||
